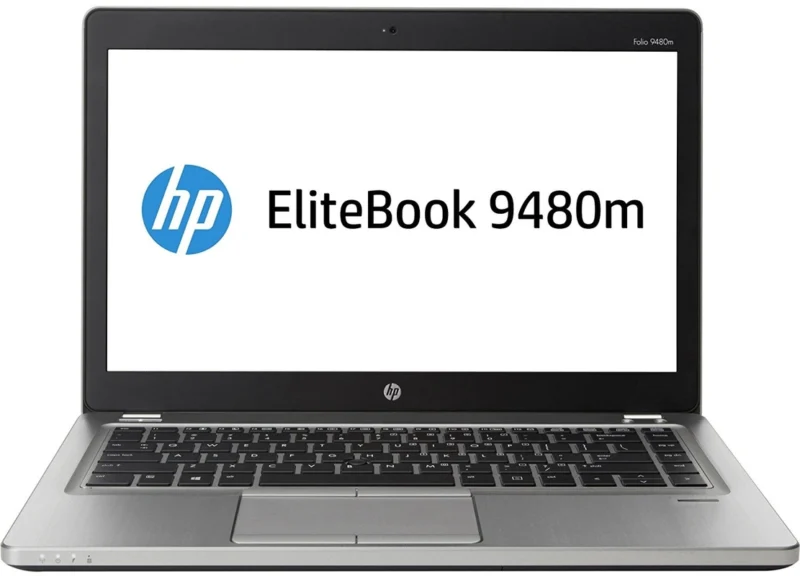

HP EliteBook Folio 9480m Notebook

14″ • 500GB • Intel Core i5

Categorie:

Beschrijving

Product features

Feature
Description
Processors
  • Intel® Core™ i7-4650U with Intel HD Graphics 5000 (1.7 GHz
    Up to 3.3 GHz with Intel Turbo Boost Technology, 4 MB cache, 2 cores)
  • Intel® Core™ i7-4600U with Intel HD Graphics 4400 (2.1 GHz
    Up to 3.3 GHz with Intel Turbo Boost Technology, 4 MB cache, 2 cores)
  • Intel® Core™ i5-4310U with Intel HD Graphics 4400 (2 GHz
    Up to 3 GHz with Intel Turbo Boost Technology, 3 MB cache, 2 cores)
  • Intel® Core™ i5-4210U with Intel HD Graphics 4400 (1.7 GHz
    Up to 2.7 GHz with Intel Turbo Boost Technology, 3 MB cache, 2 cores)†

NOTE:

*Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing on Intel® architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers, and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel® 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
 Not available with vPro
Chipset
Chipset is integrated with processor
Graphics

Integrated:

  • Intel HD Graphics 5000 (Intel® Core™ i7-4650U processor only)
  • Intel HD Graphics 4400
Display
  • Internal
    • 14″ diagonal HD* anti-glare, Standard Viewing Angle, LED-backlit (1366 x 768)
    • 14″ diagonal HD+* anti-glare, Standard Viewing Angle, LED-backlit (1600 x 900)
  • External
    • Up to 32-bit per pixel color depth
  • DisplayPort 1.2a
    • Supports resolutions up to 2560 x 1600, 30-bit color depth at 60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120 Hz
  • VGA
    • Port supports resolutions up to 1920 x 1200 at 60 Hz, and lower resolutions at up to 100 Hz

NOTE:

*HD content required to view HD images.
Resolutions are dependent upon monitor capability, and resolution and color depth settings.
Flash Cache Module
Optional 32GB MLC M.2 module support for Intel Smart Response Technology. (Not available with with SSD, SED).
Storage and drives
Primary storage bay

Hard drives

  • 500GB 7200 rpm SMART IV SATA II
  • 500 GB 7200 rpm SMART SATA II Self Encrypting Drive
HP 3D DriveGuard (Windows only)
The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive by parking the hard drive heads due to sudden impact and vibration.

Solid State Drive

  • SATA 6 Gb/s 128 GB Solid State
  • SATA 6 Gb/s 180 GB Solid State
  • SATA 6 Gb/s 240 GB Solid State
  • SATA 6 Gb/s 256 GB Solid State Self-Encrypting Drive
M.2 Solid State Drive
120 GB M.2 Solid State Drive

NOTE:

For hard drives and SSD’s, GB=1 billion bytes. TB=1 trillion bytes. Actual formatted capacity is less. Up to 30GB (for Windows 8.1) of system disk is reserved for system recovery software.
The EliteBook Folio is available in standard thin and light configurations for customers who value the ultra-thin design but prefer options such as a standalone HDD or require a self-encrypting hard drive. These configurations will not meet Intel’s definition of an Ultrabook.
Memory

Standard

  • DDR3L PC3-12800 SDRAM (1600 MHz)
  • Two SODIMM slots supporting dual-channel memory
  • Standard memory up to 16384 MB (4 GB, and 8 GB SODIMMs)

Maximum

  • Upgradeable to 16384 MB with optional 8192 MB SODIMMs in slots 1 and 2

Dual-channel

  • Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

NOTE:

Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Maximum memory capacities assume Windows 64-bit operating systems. With Windows 32-bit operating systems, memory above 3 GB may not all be available due to system resource requirements.
Networking/Communications

Wireless

  • Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries. Wireless LAN and integrated Bluetooth are also available (both are factory configurable only) and can be combined with any of the supported wireless WAN options.
Broadband Wireless (WWAN)
  • HP hs3110 HSPA+ Mobile Broadband*
  • HP lt4211 LTE/EV-DO/HSPA+ Qualcomm® Gobi™ 4G Mobile Broadband*
  • HP lt4112 LTE/HSPA+ Qualcomm® Gobi™ 4G Mobile Broadband*

Integrated wireless LAN options

  • Intel Dual Band Wireless-AC 7260 802.11ac (2×2) WiFi and Bluetooth 4.0 Combo**
  • Intel Dual Band Wireless-N 7260AN 802.11a/b/g/n (2×2) WiFi and Bluetooth 4.0 Combo**

Communications

  • Intel I218-LM GbE (10/100/1000 NIC)***

NOTE:

*WWAN is an optional feature, requires factory configuration and requires separately purchased service contract. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE not available in all regions.
**Wireless is an optional feature. Wireless access point and internet service required and sold separately. Availability of public wireless access points limited.
***The term “10/100/1000” or “Gigabit” Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.
Audio/Multimedia

Audio

  • HD Audio with DTS Studio Sound™
  • Integrated stereo speakers
  • Integrated dual-microphone array
  • Button for volume mute; function keys for volume up and down
  • Headphone/Microphone combo port
Webcam
Optional 720p HD webcam
  • HD format (widescreen)
  • Supports videoconferencing and still image capture
  • High quality fixed focus lens
  • Video capture at various resolutions up to 1280×720 resolution (720p) and up to 30fps
  • M-JPEG compression supports higher frame rates for video capture and videoconferencing
  • Improved low light sensitivity
  • Improved dynamic range
Keyboard/Pointing devices/Buttons and function keys
Keyboard
The HP spill-resistant, backlit keyboard is designed using a thin layer of Mylar film under the keyboard. This minimizes the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, 12 function keys, and 19.05 x 19.05 mm key pitch (center-to-center spacing). U.S. and International key layouts are available. Other features include hot keys for instant access to power conservation and brightness.
Pointing devices
Glass Touchpad (with chemically etched surface) with on/off button, two finger scrolling, pinch zoom, rotating and three-finger flick gestures, two pick buttons
Pointstick with two additional pointstick buttons (for a total of four)
Buttons and function keys
Discrete buttons provide easy access to the following features: wireless on/off, and volume mute. Function keys provide control of the following features: sleep mode, external display switching, volume down, volume up, microphone mute, backlit keyboard, and display brightness.
